'FORNEY' Live Steam 0-4-4T / 2-4-4T
'FORNEY' Live Steam 0-4-4T / 2-4-4T
'FORNEY' Live Steam 0-4-4T / 2-4-4T
'FORNEY' Live Steam 0-4-4T / 2-4-4T

'FORNEY' Live Steam 0-4-4T / 2-4-4T

£0.00
/
VAT included

A recent addition to Accucraft's 'generic' U.S. locos, the Forney 0-4-4 and 2-4-4 are bound to be popular with narrow gauge fans. The locos are both modelled in 1:20.3 scale and 45mm gauge in live steam. Like other fine products from Accucraft, these models are meticulously handcrafted.  A "Garden Rail" magazine review can be read here Forney

Specifications:

  • Scale/Gauge: 1:20.3 Scale/ 45mm Gauge
  • Total Weight: 2.7 kg, 4.6 lbs.
  • Length: 368.3mm, 14.5 in.
  • Width: 114.3mm, 4.5 in.
  • Height: 152.4 mm, 6 in.
  • Minimum Radius: 1.2 M, 48 in.
  • Valve Gear: Simple eccentric
  • Valves: Piston valve
  • Reversing: Piston-valve reverser
  • Fuel: Butane
  • Boiler: Single flue
  • Water Capacity: 80 cc
  • Working Pressure: 40 PSI
  • Fittings: Safety valve, water filler valve, throttle.
Versions available:

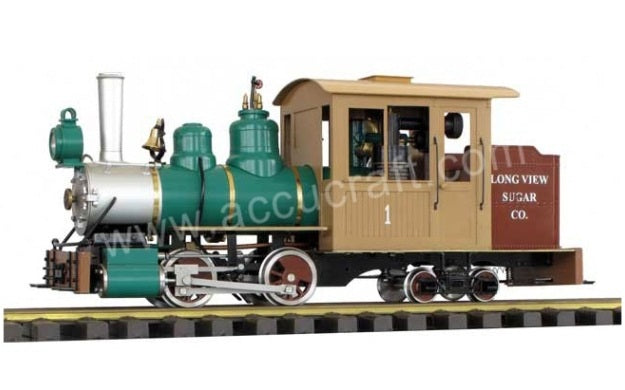

AC77-050 - FORNEY 0-4-4, GREEN BOILER with BROWN CAB, LONG VIEW SUGAR CO. #1

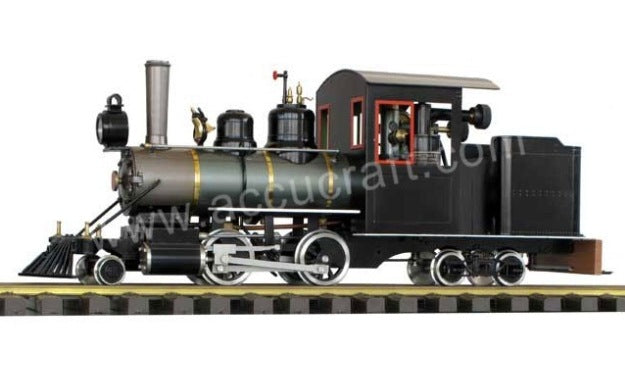

AC77-051 - FORNEY 2-4-4, BLACK UNLETTERED with SILVER BOILER

The instruction manual can be uploaded as a PDF file FORNEY instruction manual
