Regular price £70,000.00
/
VAT included

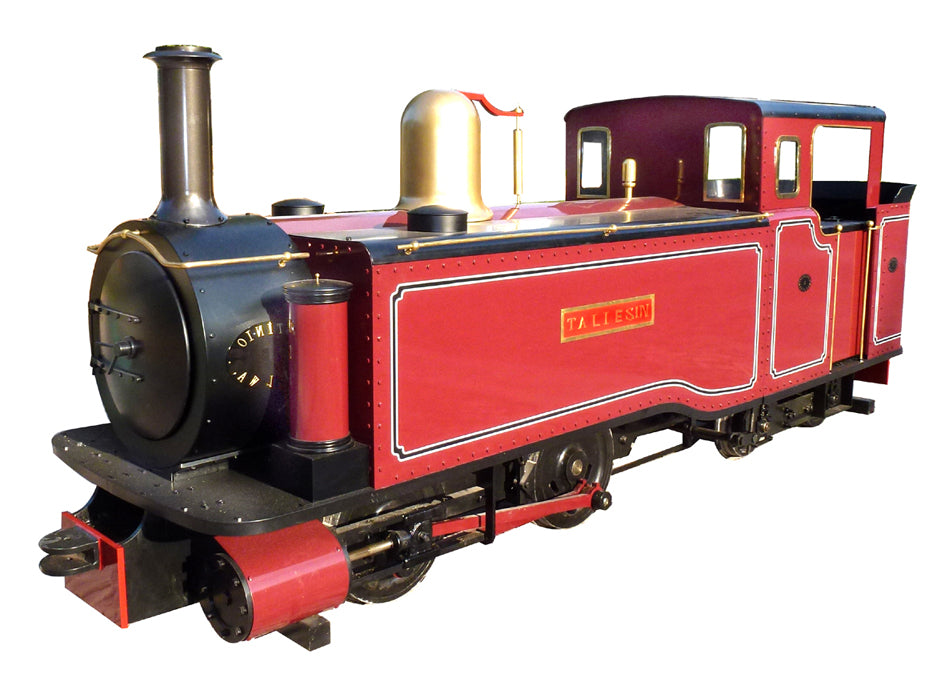

10 1/4 - 15 Inch Taliesin



TALIESIN was made in 1876 as a single Fairlie locomotive, meaning that it runs on two four wheel bogies but only one is powered. This was intended as a lighter version of the double fairlie locomotives then being introduced to the Festiniog Railway. It was eventually dismantled in 1932 when completely worn out. In 1999 a second locomotive was built to this design and given the same name.

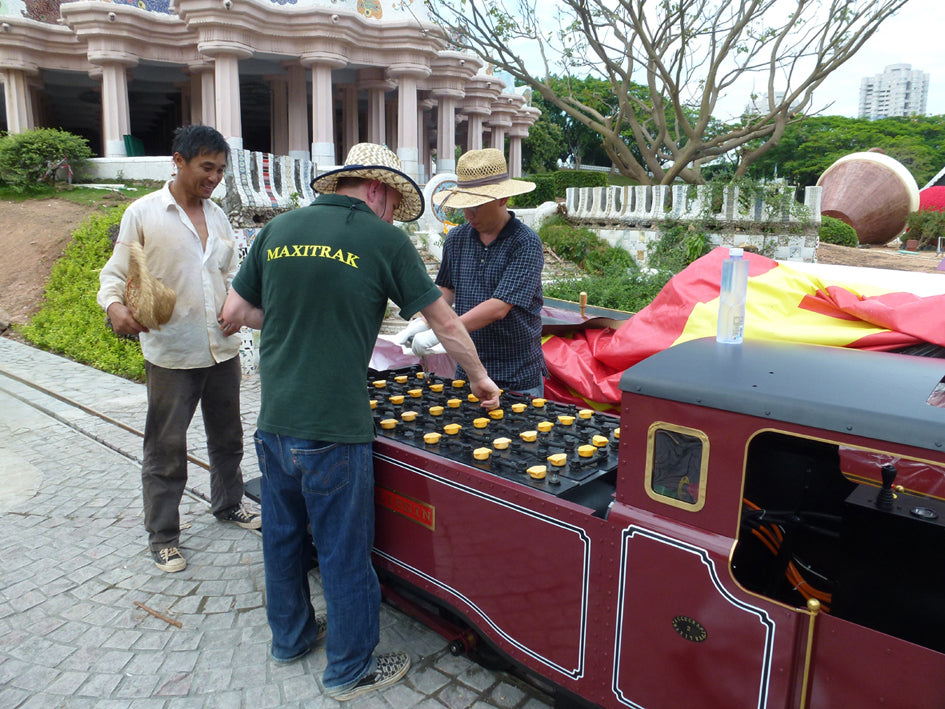

The model is 10" gauge battery powered, it has no less than 36 traction batteries powering a 14 Kw DC motor sufficient to pull fifty passengers for up to nine hours.

It can be fitted with smoke and sound for authenticity, or even built live steam. Taliesin is 2.8m long x 0.75m wide x 1.13m high.

We can custom build Park railway models and rolling stock to your Specifications: http://maxitrak.com/park_railways.php

Gauge. 10 1/4" - 15" (or larger if required)

  • Length: 2798mm
  • Width: 748mm
  • Height: 1130mm
  • Weight: 1500kg (dry), 2500kg with batteries
  • Power System. 14kw 72v battery electric or diesel hydraulic
  • Load: 50 persons per train, 9 hours of run time on a single charge, 4 min cycle time
  • Max Load. 120 persons without up scaling
